Chery Hybrid
Click to enlarge

Chinese automaker Chery and automotive components supplier Ricardo developed these hybrid versions of the Chery A5 as part of transportation arrangements for the Beijing Olympics. The 50-unit fleet comprise of two different types of A5s. One is a start-stop “hybrid” which is basically a regular 1.6 litre petrol engine with a 5-speed manual equipped with start-stop system called the Belt Starter-Generator (BSG).

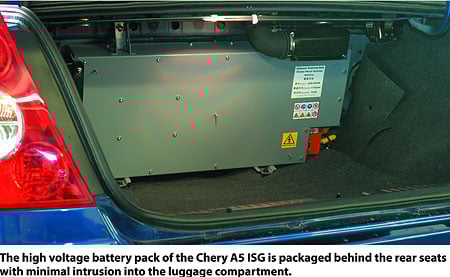

The other is what we would normally consider a hybrid vehicle. A 1.3 litre petrol engine is combined with a crank-mounted 12kW 151 volt motor. The system was fully developed by Ricardo, using an integrated hybrid control unit comprising of motor drive electronics, DC to DC converter and a high-voltage battery pack positioned behind the rear seats with minimal intrusion into the luggage area.

Ricardo claims the 1.3 litre hybrid system provides similiar peak power and torque to a 1.6 litre benchmark engine, with a 15% improvement in fuel consumption over the benchmark. In addition, the start-stop system can restart the engine within 200ms.

More images after the jump.
