Yet another hybrid is set to take a bow in Geneva, but this one walks a slightly different path. The LC Super Hybrid, as it’s called, shows what can be achieved through electric hybridisation at low voltages (12-48 volts) using the latest lead-carbon batteries.
Conceived by Controlled Power Technologies (CPT) and the Advanced Lead-Acid Battery Consortium (ALABC), the production-ready micro-mild technology offers the potential of a mass market, petrol-powered, large family car with superb drivability, impressive performance and excellent fuel economy achieved at substantially lower cost than an equivalent diesel model.

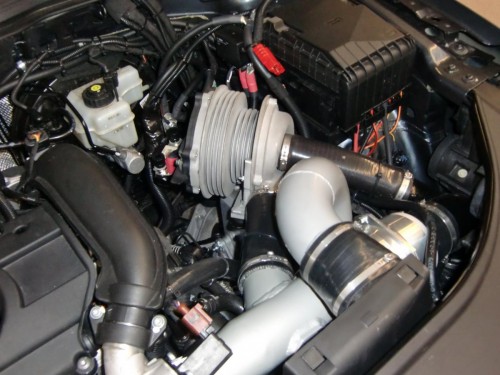

Based on a series production 1.4 litre turbocharged VW Passat TSI model, the LC Super Hybrid is set to provide carmakers with real world validation of the pioneering technology. The tech comprises a Valeo electric supercharger (powered by the battery), next generation belt-integrated starter generator with an advanced belt tensioning system, carbon enhanced valve regulated lead–acid (VRLA) batteries which avoid the need for super-capacitors, and higher gear ratios to reduce engine speed.
Recalibration of the engine has increased power from 122 to 142 PS and torque from 200 Nm to 275 Nm. This output is comparable with VW’s bigger 160 PS and 250 Nm 1.8 litre TSI gasoline engine. Despite the enhanced gasoline engine performance, the vehicle achieves near diesel levels of fuel economy, but with substantially lower production costs.

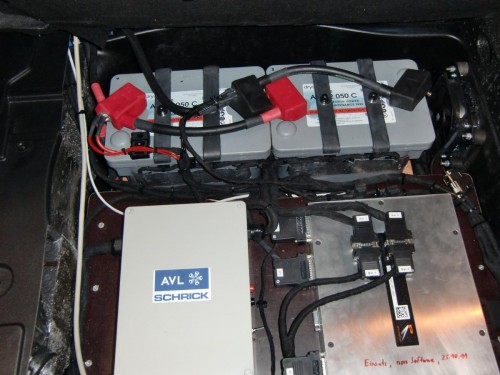

The Passat demonstrator weighs in at approximately 1,530 kg, with its upgraded battery pack and on-board test equipment adding about 79 kg to the kerb weight of the baseline vehicle. However, much of this additional mass, including the test equipment, would be eliminated in a production vehicle as well as the existing starter motor, which is made redundant by the belt-integrated starter generator.
Figures provide the necessary validity – the LC Super Hybrid delivers CO2 emissions of less than 130 g/km compared with 140 g/km for the baseline Passat 1.4 litre TSI, which is already best in class.
Similarly, fuel economy is a claimed 5.6 litres per 100 km, an improvement over the 6.2L/100 km for the 1.4 TSI, measured over the standard European drive cycle. Performance-wise, the LC Super Hybrid gets to 100 km/h from standstill in 8.7 seconds, an improvement of 2.5 seconds over the 1.4 TSI’s 11.1 seconds.
Looking to sell your car? Sell it with Carro.
So in short, better fc achieved by
1) More force induction (by the electric powered valeo compressor)
2) Higher gear ratio
3) And the starter motor?
I get 1 and 2, but for the 3rd 1, does it mean that the starter motor could be giving extra power and torque to the engine? Or else, there’s nothing hybrid about this. Anyone that knows anything bout it care to explain?
“which is made redundant by the belt-integrated starter generator.”
I guess it is what the above mention, the typical starter is made redundant and exchanged with a starter generator that is capable of starting up the engine while at the same time will also act as power generator that recharge the battery once on the move. It is quite brilliant because all this while they require a generator that is sandwich between the engine and the gearbox which is quite hefty.
Why the Passat in the picture always looks so plain but when i saw the real car is sexy as hxll lolx especially the black one hehe
I suppose this story slipped under the radar of the “Prius is the best friggin hybrid in the world” camp and also the “Prius is the REAL hybrid” camp. With specs and performance figures like this, this Passat once it goes into production will be my next goal.
