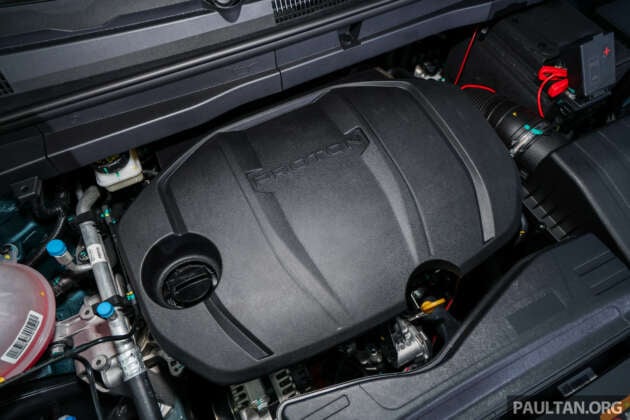

By far the biggest new feature on the facelifted Proton X50 is its 1.5 litre i-GT TD (turbo direct injection, not turbodiesel) four-cylinder engine. Offering a significant torque increase over the old GEP3 TGDi three-cylinder, the new BHE15TD mill is set to be the template for all Proton engines moving forward.
We anticipate that future versions of the X70 and S70 will receive the new engine wholesale, but of bigger consequence is the new Saga MC3 set to be launched later this year. A turbocharged and direct-injected engine would be complete overkill on such a budget-oriented sedan and would likely overwhelm the AMA-based chassis (although it would make for quite a hilarious souped-up model, don’t you think?).

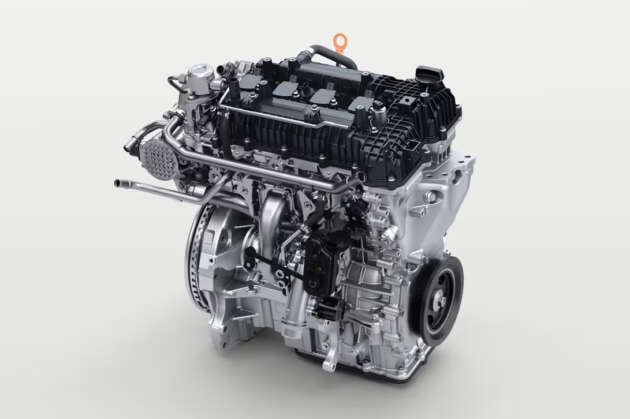

What that car needs is a more cost-effective version of the engine, and thankfully such a mill does exist. A gander through the Aurobay (Geely’s Sweden-based powertrain division, now part of Horse Powertrain) website reveals a page for the BHE15 family with some intriguing variants. Two of them are naturally aspirated, these being the BHE15D and the BHE15PFI.
The BHE15D four-pot uses a 350-bar high-pressure direct-injection system and is found in the updated Geely Emgrand (the S70’s twin) in China, producing 126 PS at 6,300 rpm and 152 Nm of torque from 4,000 to 5,000 rpm.
The all-aluminium engine maintains the BHE15TD’s 1,499 cc capacity – with an identical 73.4 mm bore and 88.57 mm stroke – but has a slightly higher 6,350 rpm redline (up from the TD’s 6,000 rpm) owing to the natural aspiration. And while it was not specifically listed on the website, the one-piece cam cover and the mention of a “silence chain” leads us to believe that the new mill will use a timing chain, not a belt, which will be music to the ears of many.
As fun as it would be to have a GDI engine in a Saga, such a fuelling setup would be expensive for an entry-level model and more complicated to service. It’s also described as a “high-performance engine” (although we would be hard-pressed to call the Emgrand a performance car), so perhaps it would be better suited to an R3 model down the line.
This is where the BHE15PFI comes in – a “low-cost” unit with port injection (still with DOHC and variable valve timing, mind) that is able to “meet different customer’s requirements” and would thus make for an ideal replacement for the old CamPro-based 1.3 litre VVT. Outputs are rated at between 99 PS and 110 PS at 6,000 rpm and between 125 Nm and 135 Nm of torque from 4,000 to 5,000 rpm, which even at the higher end is some way short of the Emgrand’s.
Still, the new mill will be at least slightly more powerful than the outgoing Saga, which makes 95 PS and 120 Nm. More importantly, the newer technologies embedded into the engine should provide a useful improvement in fuel consumption and emissions, the latter helping the car pass stricter Euro 6e regulations. Aside from the standard pure combustion configuration, the engine can be combined with a hybrid or plug-in hybrid system and can even be used as a range extender for an EV, it is stated.
The only other question concerns the gearbox that will be mated to this engine. The Saga currently uses an Aisin-sourced four-speed automatic, which may be considered a little antiquated in this day and age. Again, we could look to the aforementioned Emgrand, which is available with two transmission options – a CVT with eight virtual ratios in China and a six-speed auto (likely also Aisin-sourced) for exports.
Which one will the Saga use? A return to a CVT would match up well with Perodua’s models, which have graduated to a stepless transmission (we assume the next Bezza will, too). However, a six-speed auto would provide Proton with a point of difference and would also be more in tune with Malaysian tastes.
If Proton does go the CVT route again, the Emgrand’s newer unit (derived from Zhejiang’s WLY, which also supplies Chery) should be much smoother than the Punch CVTs from older Protons. Fun fact – past Emgrand models have also utilised a Punch VT2 CVT, meaning Proton and Geely have some commonality here. Which route would you go for – CVT or auto?
Aside from the new engine, the Saga MC3 is also expected to inherit some major exterior tweaks and an all-new dashboard, replete with a widescreen display panel incorporating new instrument and infotainment screens. Some advanced driver assistance systems (ADAS) are also confirmed to appear on the car.
