Proton GEN2 Facelift

The facelifted Proton GEN2 which was revealed in Thailand earlier has finally arrived on Malaysian shores. The GEN2 is an important mark in Proton history as it was the first Proton car with the new Proton Campro engine, and with this facelift it gets a new series of engines based on the Campro. Read more details after the jump.

Proton GEN2 Facelift

The new facelifted 2008 Proton GEN2 comes in medium line and high line versions. The medium line version features a new Proton Campro 1.6 IAFM engine, the larger sibling to the 1.3 IAFM Campro found in the recently launched Proton Saga. The IAFM system solves the infamous torque dip of the barebones Campro engine, and should be alot better to drive around the city now, as you do not need to rev very high to get sufficient torque for acceleration. The Proton GEN2 mid line with the IAFM Campro 1.6 delivers produces 110 horsepower at 6,000rpm and 148Nm of torque at 4,000rpm. Torque at an engine speed of 3,000rpm is 139Nm, while the barebones Campro only delivered 128Nm of torque at that engine speed.

The high line version has the Proton Campro CPS engine, which also comes in 1.6 litre displacement. This engine made its Malaysian debut with the Proton Waja Premium CPS recently. It produces 125 horsepower at 6,500rpm, and 150Nm of torque at 4,500rpm, while also making at least 139Nm from 3,000rpm onwards.

Proton GEN2 Facelift
Click to enlarge

The interior gets a redesign, adopting the Persona’s interior featuring a redesigned dashboard without the odd clock in the middle and gaining a glovebox. The door trim is all-new, also from the Persona, and features power window switches on the door arm rest instead of in the middle of the two front seats. The highline version gets leather seats and an interior with some black and red trim. It also gets Dual SRS Airbags, ABS brakes, and EBD, while the medium line version only gets a driver’s airbag. Something new for the GEN2 and cars in this segment is Automatic Cruise Control, available on the high-line version.

Proton GEN2 Facelift
Click to enlarge

As previously explained, the new CPS engine uses two technologies to achieve the new higher output and torque levels. One is CPS, a camshaft profile switching system which changes over at 3,800rpm and enables a higher valve lift. The other is VIM, which stands for Variable Intake Manifold. A longer intake manifold is used at low RPMs to achieve slower air flow; this promotes better mixing with fuel. The short intake manifold allows more air in faster, which is beneficial at high RPMs. More info here.

Proton GEN2 FaceliftWith the extra power and torque, its only natural that the engine would produce more heat, so Proton has installed an additional water-cooled oil cooler. This can be seen installed next to the oil filter. You can see a cylindrical object with heat sink fins.

The Proton Campro 1.6 IAFM engine produces the same peak torque and horsepower as the barebones Campro, but also has had its low to mid range torque boosted to eliminate the torque dip. The IAFM engine has a variable intake manifold system that produces similiar results to the Campro CPS’s VIM system, using a long runner and a short runner. It also has a coil on plug ignition system which eliminates spark plug cable losses, something that even the CPS engine does not have.

The new Proton GEN2 facelift comes in 4 colours – Nanbu Black, Hibiscus Tea, Metal Grey and Iridescent white. I like the last 2. Hibiscus Tea is kinda strange but unique. The high line version will be available on the 5th of March onwards, and the mid line will come later on the 25th.

Prices:
Proton GEN2 1.6 CPS High Line Auto – RM60,488
Proton GEN2 1.6 CPS High Line Manual – RM57,488
Proton GEN2 1.6 IAFM Medium Line Auto – RM56,488
Proton GEN2 1.6 IAFM Medium Line Manual – RM53,488

Test drive report coming up soon in the next few weeks or months, depending on when the press fleet is available.

In the meanwhile, enjoy more photos of the Proton GEN2 Facelift.

Related Posts:
Proton Waja Campro 1.6 Premium CPS Details – More technical info on the CPS engine

Proton GEN2 Facelift

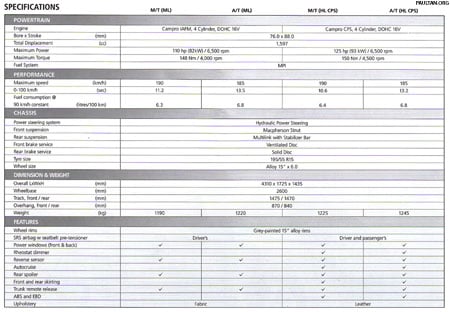

Click to enlarge – Specifications List

VIDEO: 2008 Proton GEN2 Facelift TV Commercial

VIDEO: Proton Campro CPS Engine Cut-away

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift

Proton GEN2 Facelift
Click to enlarge – Hibiscus Tea

Proton GEN2 Facelift
Click to enlarge – Iridescent White

Proton GEN2 Facelift
Click to enlarge

Proton GEN2 Facelift

Proton GEN2 Facelift
Click to enlarge
